Overview

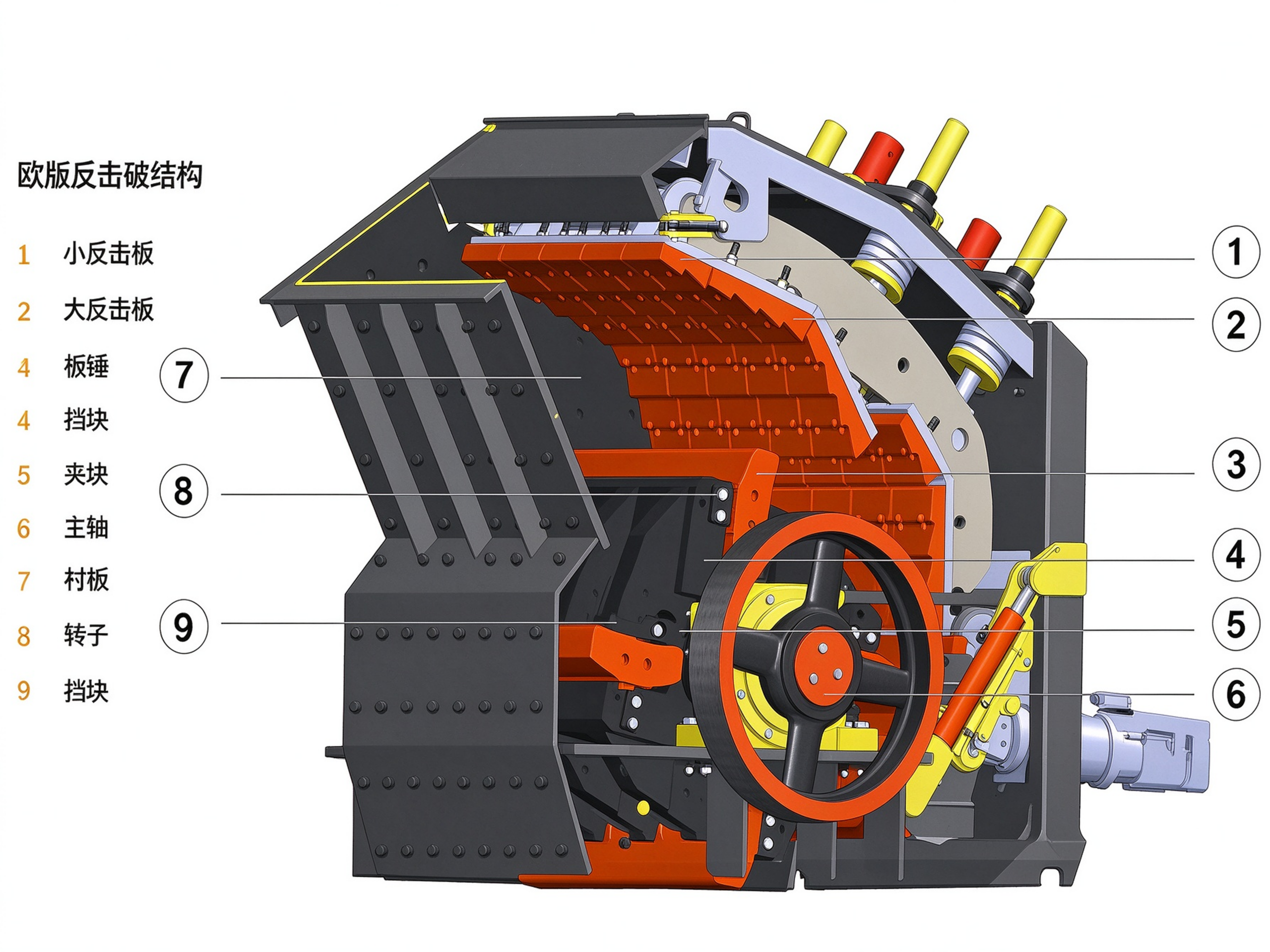

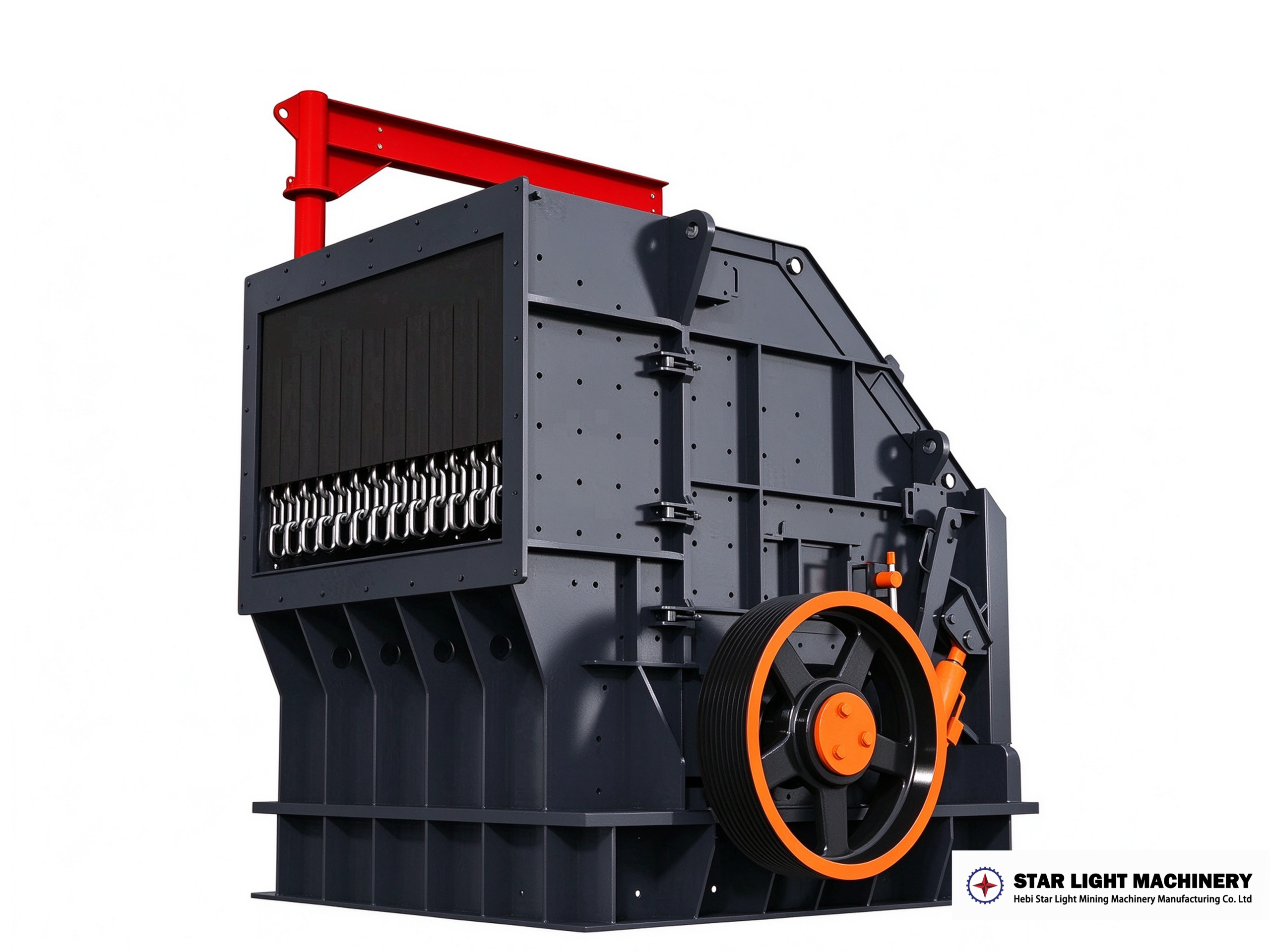

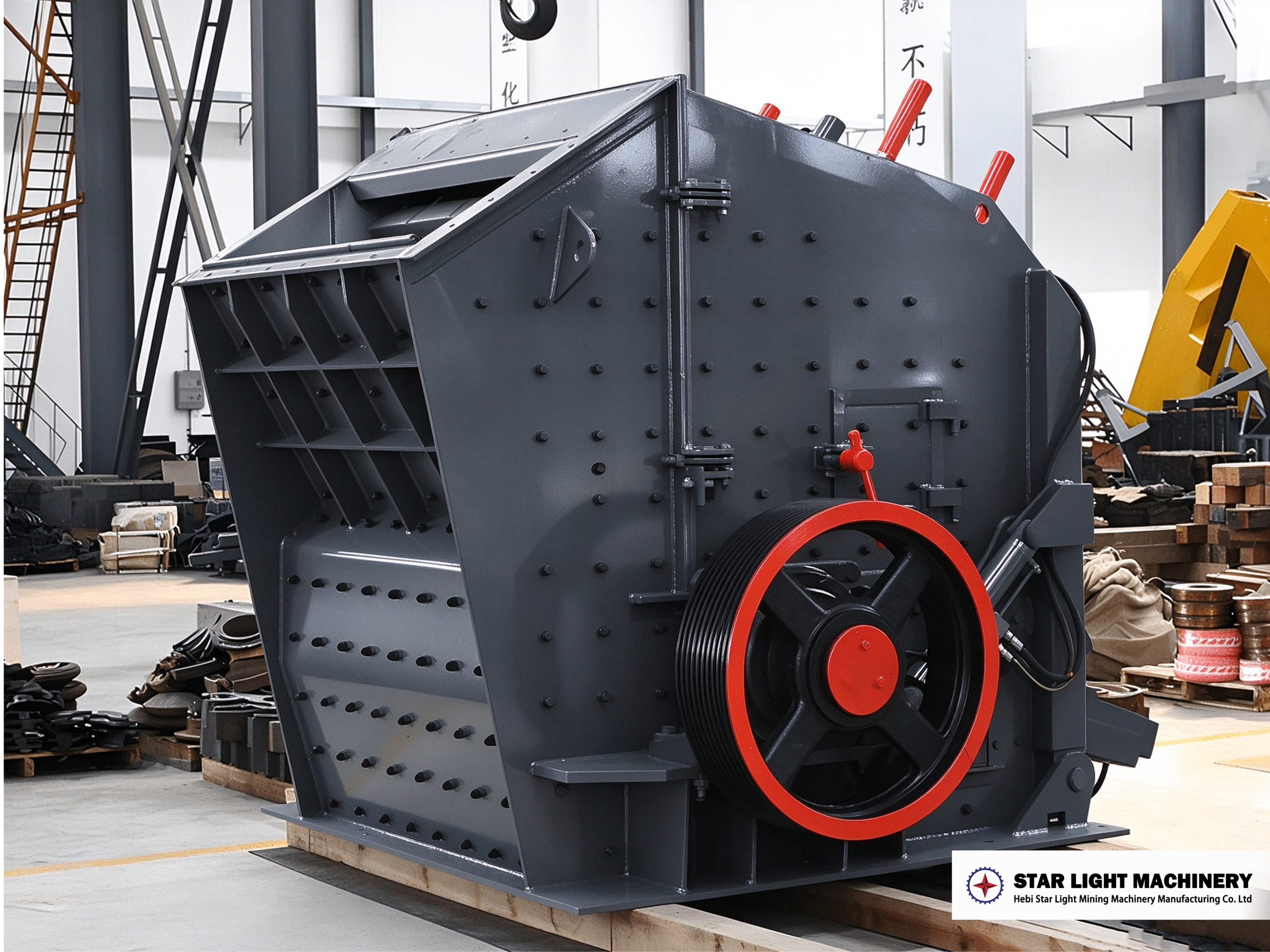

The European version of the impact crusher incorporates advanced international technology and is widely used in the mining, cement, construction aggregate, and sand manufacturing industries. It is suitable for the primary, secondary, and fine crushing of materials ranging from soft to medium-hard.
Product Introduction
The PEW jaw crusher, commonly referred to as the European-style jaw crusher, is a new type of crusher developed by our company based on traditional jaw crushers. By integrating modern technology with practical production experience, this product better meets customers ‘automation requirements. Compared with traditional jaw crushers, the PEW European-style jaw crusher features significant improvements in operating parameters, structural design, and adjustment methods. The PEW crusher employs an innovative modular design, high-quality alloy steel castings, and rolling bearings, which substantially enhance the equipment’s fatigue resistance and operational reliability. This ensures high production efficiency, cost-effectiveness, and reliable performance during crushing operations. The crusher also offers flexible installation options to meet a wide range of application requirements.
Operational Principle
The motor drives the eccentric shaft to rotate via a pulley
The rotation of the eccentric shaft drives the rotating jaw assembly to perform complex oscillatory motion. As the moving jaw swings forward, it pushes the moving jaw plate toward the stationary jaw plate. At this point, the material between the two jaw plates is crushed by intense compressive and shear forces.
Under the action of the eccentric shaft, the moving jaw moves backward, causing the crushed material in the crushing chamber to fall through the bottom discharge outlet due to its own weight. As the motor rotates continuously, the moving jaw periodically crushes and releases the material, enabling continuous production
Features
Parameter
| Parameter Item Parameter | Typical Specification | Remark |
| Equipment Model | PFW-1214 / PFW-1318 / PFW-1415 | |
| Feed Size | ≤300–500 mm | |
| Output Size | 0–60 mm (plate hammer gap adjustable) | |
| Processing capacity | 90–320 t/h | Visual materials |
| Motor Power | 132–315 kW | |
| Power Supply | 380V / 50Hz (60Hz available upon customization) | |
| Key Features | Three-chamber crushing, hydraulic frame opening, high-chromium plate hammer | |
| Applicable Materials | Two-stage crushing of recycled concrete aggregate, limestone, and similar materials |
